Affordable college lecture hall seating China Supplier: Specification, Ordering and Quality Notes

Scope of Supply and Physical Form

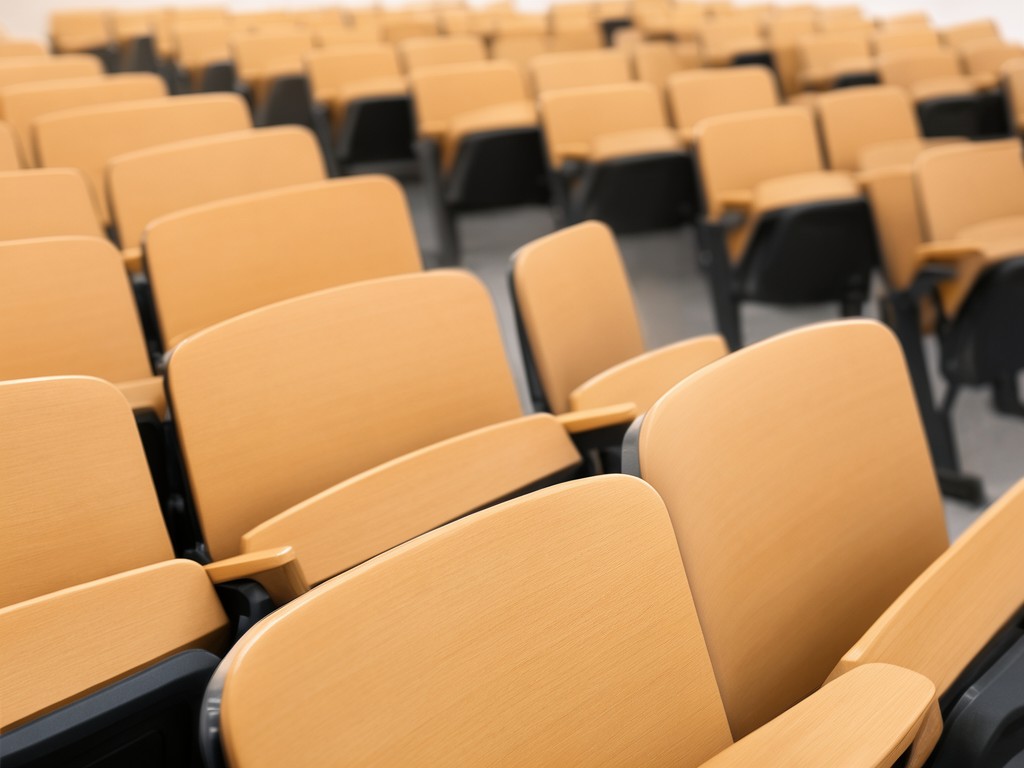

Each unit ships as a fully assembled row module comprising a steel sub‑frame, molded plywood seat pan, high‑resilience polyurethane foam, and a fire‑rated fabric cover. The sub‑frame uses cold‑rolled steel tube with a wall thickness of 2.0 mm for the standard line and 2.5 mm for the heavy‑duty line. Seat pitch is adjustable in 10 mm increments from 540 mm to 600 mm to match tiered floor plans.

Finish is an epoxy‑polyester powder coat at 80 µm minimum, tested for 500 h salt‑spray exposure. Mounting hardware includes M10 × 80 mm grade 8.8 bolts and nylon‑insert lock nuts. The foam density is 30 kg/m³ for standard use; the heavy‑duty variant uses 45 kg/m³ to extend cycle life beyond 250 000 seat‑down events.

What Actually Determines Performance

Weight and stiffness trade off against each other; a thinner wall reduces shipping mass but lowers the load rating and increases deflection under repeated loading. The limiting factor is rarely the headline load rating — it is the cumulative fatigue at the bolt‑hole region after 100 000 cycles.

Selection Decision Tree

1. Define required seat pitch
   1. Pitch ≤ 560 mm → compact frame (2.0 mm wall)
   2. Pitch > 560 mm → standard frame (2.0 mm wall) or heavy‑duty (2.5 mm wall)
2. Select load rating target
   1. 200 kg per seat → 2.0 mm wall, 30 kg/m³ foam
   2. 250 kg per seat → 2.5 mm wall, 45 kg/m³ foam
3. Choose fabric abrasion class
   1. ≥ 30 000 Martindale → standard polyester blend
   2. ≥ 60 000 Martindale → solution‑dyed nylon

Repeat loading drives the failure mode at the bolt‑hole cluster; the heavy‑duty frame adds a reinforcing gusset that raises the fatigue threshold by roughly 30 %.

Usage Scenarios and Buyer Segments

University lecture halls with 300‑seat tiers demand the heavy‑duty line because daily occupancy exceeds 8 h and the fire code requires EN 1021‑1 compliance. Community colleges with 150‑seat rooms often select the standard line; the lower unit weight reduces freight cost per container.

Corporate training centers that reconfigure rooms quarterly benefit from the adjustable pitch and the quick‑release bolt pattern, which cuts reinstallation labor by 40 %.

OEM and ODM Programme Structure

OEM orders start at 200 pcs per configuration; tooling for a custom pitch or a branded logo on the seat back adds a one‑time die cost of US $1 200 and extends lead time by 10 days. ODM projects — new shell geometry or integrated writing tablet — require a minimum of 500 pcs and a 6‑week prototype validation cycle.

Sample approval follows a three‑step gate: dimensional inspection (±1 mm), load‑test to 1.25 × rated load, and fabric colour fastness to ISO 105‑B02. Once signed, production runs are scheduled in 4‑week windows with batch traceability labels on each carton.

Questions Buyers Ask Before Ordering

What is the typical lead time for a first order?

Standard configurations ship in 4 weeks after deposit; custom pitch or logo adds 10 days for tooling.

How is seat pitch verified on the production line?

A laser gauge checks each row at three points; any deviation > 2 mm triggers a hold.

What foam density options exist and how do they affect cycle life?

30 kg/m³ yields ~150 000 cycles; 45 kg/m³ pushes past 250 000 cycles with a 1.2 kg weight penalty per seat.

Can the fabric be supplied in a specific Pantone colour?

Yes, solution‑dyed nylon can match any Pantone solid; minimum dye lot is 500 m, adding 5 days to fabric lead time.

What packaging protects the frames during sea freight?

Frames are wrapped in 150 µm stretch film, placed on fumigated wooden pallets, and strapped with PET banding; each container holds 84 standard rows.

Is there a warranty on frame fatigue?

A 5‑year limited warranty covers structural fatigue up to the rated cycle count; claims require a third‑party inspection report.
