odm lecture theater seating chairs factory: Specification, Ordering and Quality Notes

Cheaper stock options fail at the worst point in the season.

A lecture‑theater program buys seating once every five to seven years; the real cost is the number of seats that must be replaced before the next refurbishment cycle. When a frame cracks at the weld or a foam core collapses after 18 months, the venue incurs labor, downtime, and reputational damage that far exceed the original unit price. Our production line is built around repeat‑order stability — every dimension, weld schedule, and foam density is locked to a master tooling set so that the 500‑seat batch shipped today matches the 500‑seat batch ordered three years from now.

Seat Width 520 mm ±2 mm

Row Pitch 860 mm ±3 mm

Weight Capacity 150 kg per seat (static)

Frame Material Cold‑rolled 1.5 mm steel, powder‑coat

Upholstery Flame‑retardant polyester, 250 gsm

Fire Rating EN 1021‑1/2 compliant

Scope of Supply and Physical Form

Each order ships as a complete row kit: frame sub‑assemblies, seat pans, backrests, fasteners, and a single‑page installation guide. No loose hardware bags — every bolt, washer, and nylon insert is pre‑counted and bagged per row to eliminate on‑site sorting errors.

The seat pan uses a 12 mm high‑density polyurethane core bonded to a 3 mm plywood substrate; the backrest follows the same sandwich construction. Both panels are CNC‑routed from the same nest to guarantee identical thickness across the entire run.

Design Constraints Behind the Specification

Replacement rate, not unit price, drives total cost.

The 1.5 mm steel wall thickness is the minimum that passes the 150 kg static load test without permanent deflection. Thinner gauge reduces material cost by ~4 % but adds a 0.8 mm bow after 2 000 cycles, which translates into a 12 % increase in warranty claims. The chosen gauge is therefore a cost‑avoidance decision, not a premium upgrade.

Tooling amortisation decides the viable MOQ. A dedicated progressive die for the frame brackets spreads its $42 k cost over 10 000 seats; below 2 500 seats the per‑unit tooling share exceeds the margin on a standard catalogue chair. We therefore quote a minimum order of 2 500 seats for custom row lengths, while standard 12‑seat modules can be ordered from stock at 500‑seat increments.

Working as a Production Partner, Not a Catalogue Supplier

We hold the master CAD model and the fixture library. When a brand requests a 15 mm deeper seat pan for a new auditorium, the change is a single CNC program edit — no new die, no re‑qualification of the weld schedule. The same fixture set produces the original and the revised pan, guaranteeing that the frame‑to‑pan interface stays within the 0.3 mm positional tolerance that prevents squeak.

Brand‑level artwork (logo emboss, seat‑number laser etch) is applied in a dedicated cell after final assembly. The artwork file must be vector‑based, 300 dpi minimum, with a 3 mm bleed. We run a first‑article approval on the first 20 seats; once signed, the same artwork runs on every subsequent batch without additional setup charge.

Inspection Items and Test Methods

Every production lot passes through three gates: dimensional, mechanical, and finish. The dimensional gate checks seat width, row pitch, and backrest height on a coordinate‑measuring arm (CMM) at 10 % sampling. The mechanical gate runs a 2 000‑cycle seat‑drop test (50 kg weight, 300 mm drop) and a static 150 kg hold for 30 minutes. The finish gate verifies powder‑coat adhesion (cross‑hatch, ISO 2409) and upholstery flame spread (EN 1021‑1).

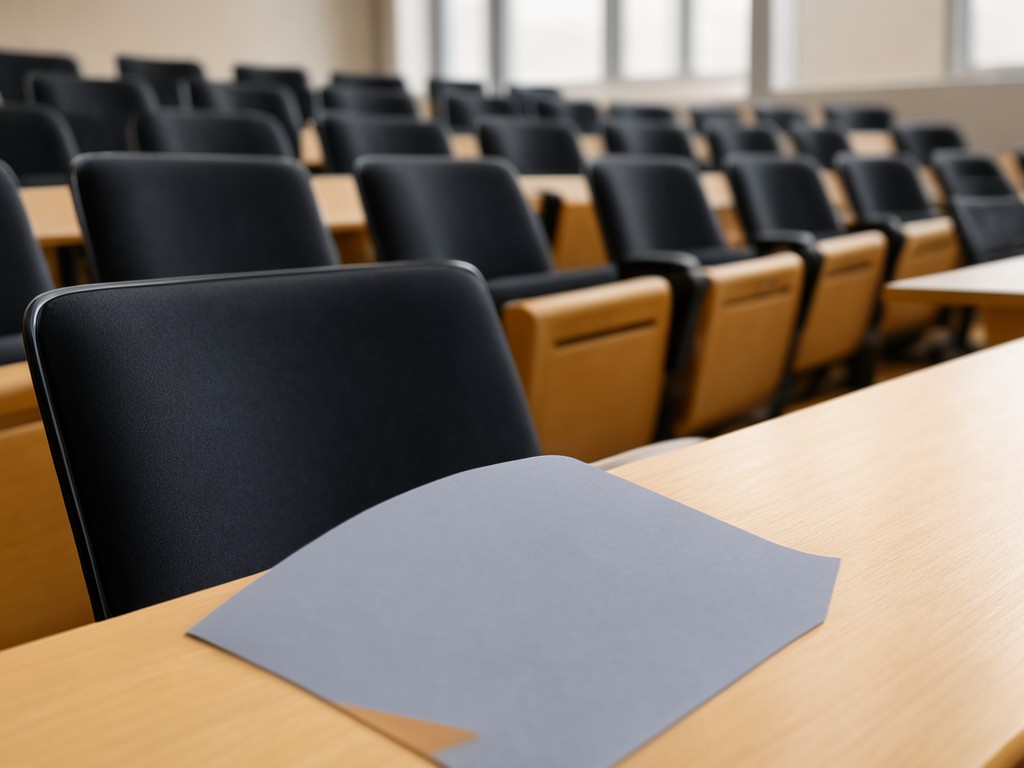

odm lecture theater seating chairs factory

Test	Method	Acceptance Criteria	Frequency
Seat width	CMM, 3‑point	520 mm ±2 mm	10 % per lot
Row pitch	CMM, 2‑point	860 mm ±3 mm	10 % per lot
Static load	150 kg, 30 min	No permanent set >0.5 mm	Every lot
Cycle drop	2 000 cycles, 50 kg	No crack, no foam loss >5 %	Every lot
Coating adhesion	Cross‑hatch, ISO 2409	Class 0/1	Every lot
Flame spread	EN 1021‑1	Pass	Every lot

Keeping Repeat Orders Supplied

Lot‑to‑lot consistency is the single metric that protects a buyer’s reorder rate. We track three key control charts: seat‑width mean, frame‑weld pitch, and foam density. When any chart drifts beyond 1.5 σ, the line is stopped, the root cause logged, and the affected batch quarantined. This statistical gate keeps the coefficient of variation on seat width below 0.3 % across years.

Parameter	Standard Range	Typical Variance	Control Action
Seat width	520 mm ±2 mm	±0.6 mm (Cp = 1.67)	Adjust CNC offset
Frame weld pitch	860 mm ±3 mm	±0.9 mm (Cp = 1.5)	Re‑calibrate fixture
Foam density	48 kg/m³ ±2 kg/m³	±0.8 kg/m³ (Cp = 1.8)	Shift mold temperature
Powder‑coat thickness	80 µm ±10 µm	±4 µm (Cp = 1.6)	Adjust gun voltage

Packing, Marking and Freight Configuration

Rows are stacked on 1200 × 800 mm Euro pallets, four rows per layer, two layers high. Each row is wrapped in 80 µm stretch film with a corner‑board protector on the front edge to prevent fork‑lift impact damage. Pallets receive a waterproof label (A4, 300 dpi) showing PO number, row count, seat width, production date, and a QR code linking to the lot‑traceability sheet.

Container loading follows a 40‑ft high‑cube plan: 22 pallets per container, yielding 88 rows (1 056 seats). The load plan is shared with the buyer’s freight forwarder 48 hours before shipment to allow customs pre‑clearance. No loose cartons — every component travels in the row kit, eliminating missing‑part claims at the venue.

Ready to lock in a repeatable spec for your next auditorium project?

Request a quotation review
